• Rated operating voltage: 6.6kV; • Maximum operating voltage: 7.2kV; • Frequency: 50Hz/60Hz; • Plug type: 350A; • Protection level: IP56; • Cable specifications: flexible compliant cable 6/10kV or 8.7/15kV (meet ISO 80005-1, CCS approval); • Motor power: 7.5KW; • Empty disk speed: 7.2m/min; • Full disk speed: 14.12m/min; • Internal diameter of drum : 1042mm; • Outer diameter of drum: about 2652mm (depending on cable
parameters)
AMP HV Cable Reel
Technical Features & Main Advantages
• Products according to customer needs to provide major classification society product certificate; • The products meet the requirements of IEC/ISO/IEEE 80005-1 High Voltage Shore Connection (HVSC) Systems specifications; • The core components of the product are independently developed, including slip-ring unit, plug, socket, powertrain (including intelligent unit), PLC control unit, of which the slip ring unit and plug, socket have passed the test of professional testing institutions; • The product can perform constant tension control to ensure the safety of cable and plug connection;

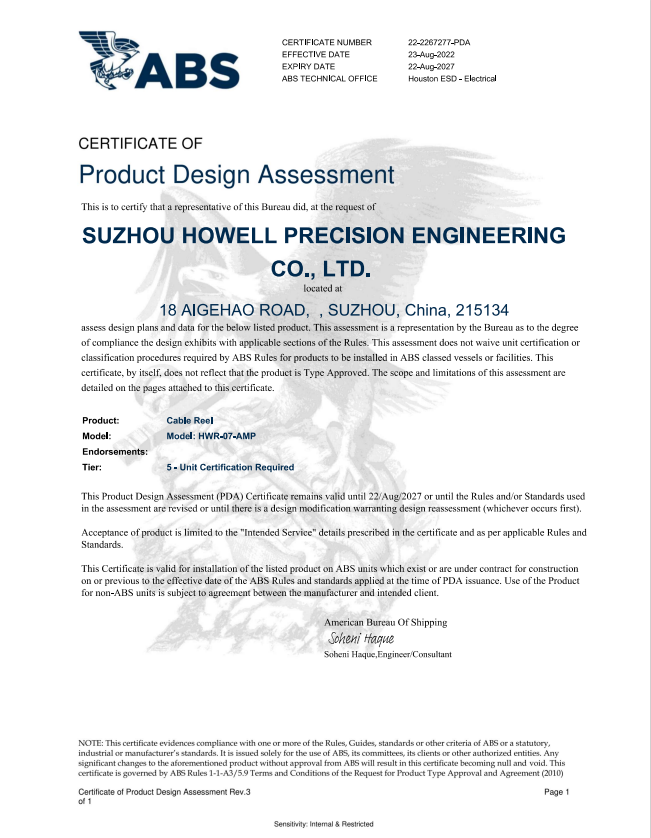

ABS Certificate
Howell AMP HV Cable Reel were approved by American Bureau of Shipping in August 2022
